Vertical Sliding Shelves: Build Options Compared (4 Systems)

Vertical sliding shelves are drawer-style storage units that stack in columns and roll out on tracks so you can reach items at the back without pulling everything forward.

The same track system that saves space will bind or rack if your floor slopes more than an inch and a half, which most garage floors do.

I mark a level chalk line at 81 inches up from the highest point of the floor before cutting a single 2×2; otherwise the columns end up fighting the concrete instead of standing on it.

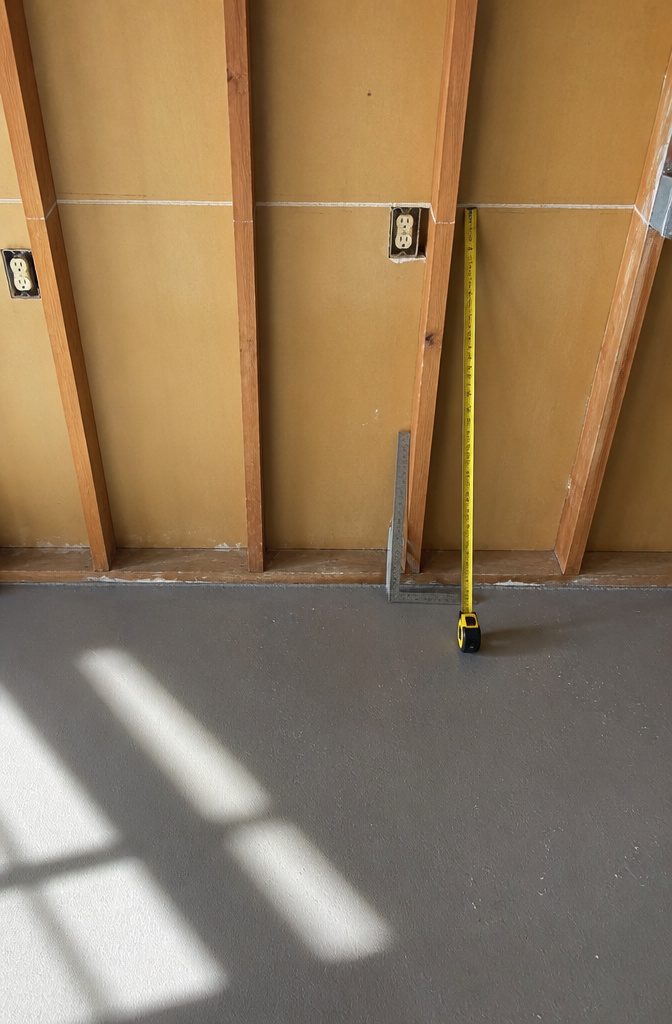

Map It Out on the Wall

A 16-foot run of vertical sliding shelves should be mapped on the wall before a single 2×2 gets cut.

The target footprint is 16 ft long, 84 in tall, and 16 in deep, which sounds generous until you realize garage floors often slope enough to throw the whole layout off.

I start by finding the high point of the floor, measure 81 in up from there, and snap a level chalk line across the full span.

That line becomes the bottom edge of the top shelf and the reference for every column height after.

The 16 ft length matters because end columns that happen to land over studs save you headache later, though it is not necessary to force it.

What is necessary is checking for obstructions now: studs, pipes, anything that blocks where a cleat needs to anchor.

Mark plumb lines for each column edge, measure down from your level line at both ends, and note if the floor drops more than 1-1/2 in.

If it does, some columns get built taller. This ten minutes on the wall prevents an hour of cursing at assembled pieces that do not fit.

Assemble the Columns and Shelf

Wood glue on particleboard creates a bond stronger than the material itself, which matters more in a tall vertical sliding shelf unit than people expect.

Without that glue line, the assembly relies entirely on mechanical fasteners, and a 7-foot column with shelves mounted between it will rack sideways the first time a rollout binds or loads unevenly.

I use brads or screws to pull the joint tight and hold it square while the glue sets, but they are temporary clamps, not the structure.

Square joints start with marking shelf locations on both the front and back faces of each column before you attach anything.

A long T-square carries those marks straight down the length so the shelves sit level and the slides run true.

A framing square checked against the wall keeps the whole assembly at a right angle when you toe-screw the columns to the shelf frame. Skip that check and the vertical drawers will bind no matter how precisely you built them.

For a 14-inch tall drawer section, three screws per side on the front and back pieces is enough mechanical hold, with two screws at each end of interior shelves.

A front lip glued and nailed to the shelf face before assembly keeps contents from sliding off, and doing it before the box is built means you can clamp flat instead of wrestling inside a narrow opening.

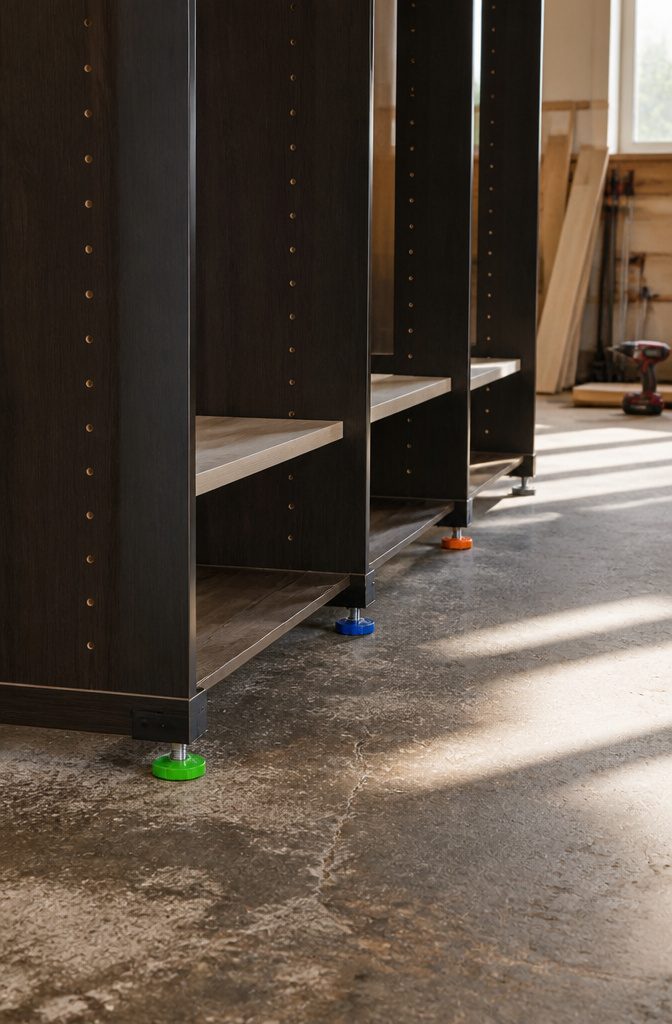

Install Leg Levelers

Garage and basement concrete almost always slopes toward a drain or the overhead door, and that slope is where vertical sliding shelves rack if you skip the adjustment step.

About an inch of total range is usually enough to handle the typical fall in a residential garage floor, though older slabs can surprise you.

I set the levelers at the lowest point first, then raise the others until the column reads plumb on two faces.

The levelers keep the column feet dry by lifting them off the concrete, which matters in spaces where damp wicks up through the slab.

If the floor has a pronounced crown or valley, I shim under the leveler foot rather than max out the thread, since those screws have more lateral play the farther they extend.

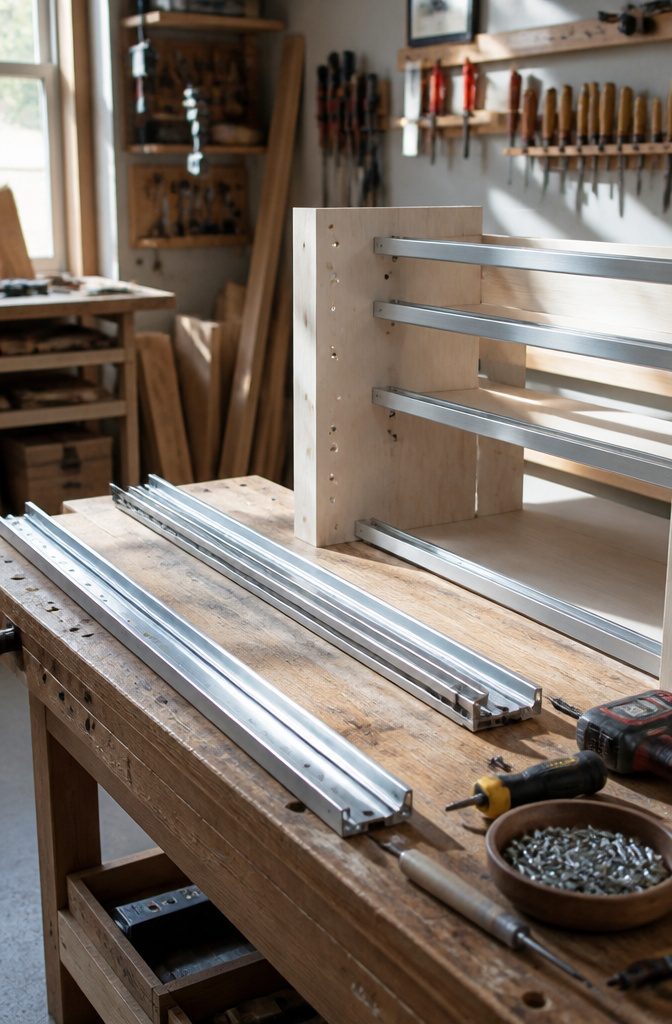

Attach the Tracks to the Shelf Frame

Drawer tracks belong on the shelf frame before the frame ever meets the wall or columns. Someone installing vertical sliding shelves overhead, with arms raised and the unit already heavy, fights gravity, fatigue, and their own patience.

Pre-installation lets you work at bench height, where a slipped drill bit costs a minute instead of a bruise or a stripped screw hole.

The source material specifies 32-inch aluminum tracks, cut with a hacksaw and drilled for mounting screws before attachment. I would use 2-inch pan head or washer head screws here, driven through those pre-drilled holes into the frame.

The real test comes after the first track is set but before the second is committed to place. A framing square checks whether the pair runs parallel, which is what keeps the sliding shelf from binding or racking once loaded.

Sighting by eye is not enough; even a sixteenth-inch divergence over that 32-inch length turns smooth travel into a grind. Parallel tracks, confirmed, then the frame lifts into position for its structural anchoring with 4-inch screws.

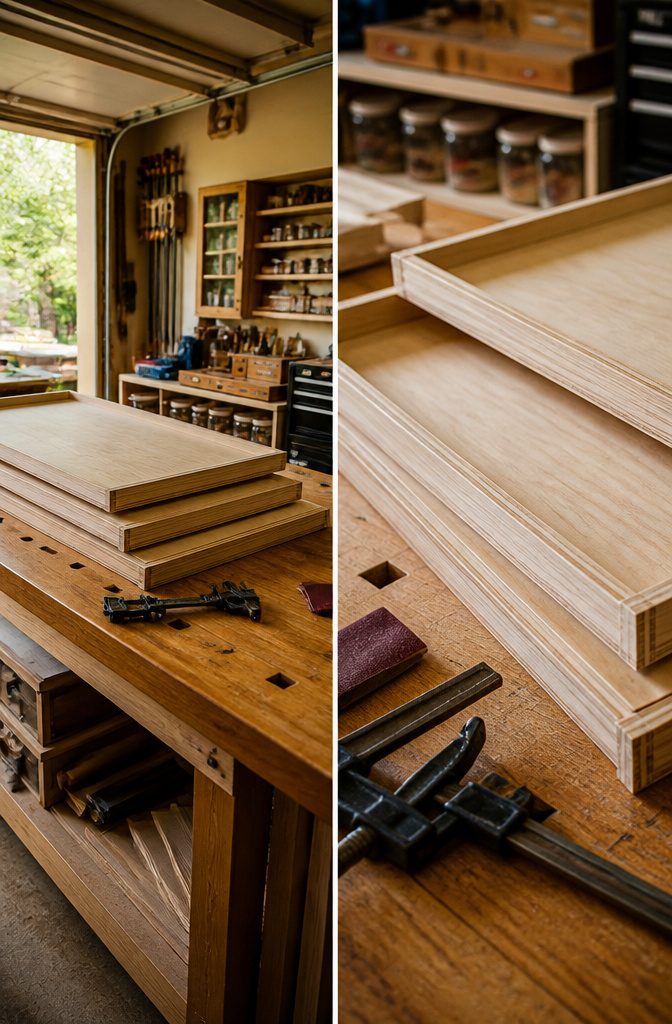

Build the Rollout Shelves and Bypass

The material choice for these shelves is straightforward: 1/2" plywood keeps the boxes light enough to slide without fighting the hardware, and the half-inch thickness gives you enough meat for a solid screw joint without wasting depth.

I build the drawer boxes at 22 inches deep to match the drawer slide length, and 14 inches tall, which leaves useful breathing room in a standard cabinet opening.

Three screws per side work for the height, with the middle shelf and bottom each taking two more on each end.

The bypass panels are what let this system stack. Each shelf gets a face that projects past the box, and those faces overlap like shingling so the units slip past each other instead of colliding.

The front lip on each shelf keeps contents from sliding off when you roll it out, and attaching that lip before assembly saves a lot of clamp-wrestling later.

A quick sanding on every edge matters more here than on fixed shelving; these boxes move, and sharp corners catch fingers every time.

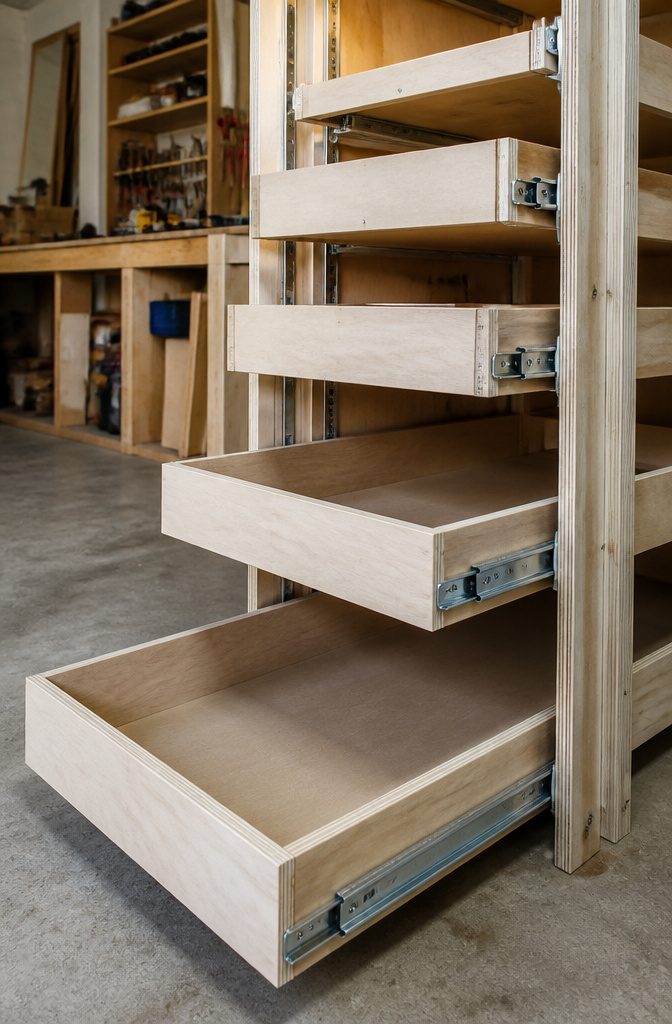

Mount the Rollouts and Bypass

The rollers slide into the tracks easiest when the shelf box is supported from below, so I stack scraps to take the weight while I line up the wheels.

For the standard rollout shelves, I connect the rollers to the top of the box first, then slide the wheels into the tracks; the bypass unit hangs differently, with rollers installed in the track before mounting and the unit sliding into brackets after.

Either way, test the full slide action before you tighten anything final, because binding almost always means the tracks are out of parallel or the box is racked.

If a box sticks, loosen the brackets, check that the spaces between rollouts are even, and use the small wrench on the adjusting bolt below the rollers to bring the face flush.

Those adjustable rollers are what let you fix this after installation rather than during, which matters because each pair carries 125 lbs. for a total weight limit of 250 lbs. per rollout, and a loaded box that binds will eventually damage the track or the brackets.

Each pair of rollers is rated for 125 lbs., for a total weight limit of 250 lbs. per rollout.

— Family Handyman

That 250 lbs. is enough for a cabinet full of power tools or canned goods, but not for a loaded compressor or bulk cement, so plan the contents accordingly.

Finish Up With Trim Boards

Wait until the tracks slide smooth and the shelves clear every column before you nail on any trim.

Particleboard strips hide the raw front edges of the top shelf and the column faces, but they also lock in every gap and reveal every misalignment.

If the unit binds or the bypass catches, trim boards make the fix much harder.

Family Handyman’s build used two 8-foot lengths end-to-end for the front edge, with side pieces overlapping at the ends. That same particleboard can take stain, paint, or just a couple coats of polyurethane.

Cabot Early American stain on the rollouts with black columns is one route; a clear oil-modified polyurethane over bare particleboard is another if you want less contrast and less work.

I would stain before assembly if the build is going in a permanent spot. Touching up inside a finished frame means brushing into corners that a rag or sprayer would handle easier on the bench.

Prefinished parts ding during install, so the coat stays thin until function is proven and the trim goes on last.

DIY Rollout Shelves

The DIY rollout approach using plywood and standard drawer slides is the build most people end up with, and for good reason.

Plywood takes screws and glue without fuss, drawer slides are cheap at any hardware store, and the whole system bends to whatever you actually store.

Tall pantry items, short spice jars, or deep bins for toys all fit because you set the shelf heights yourself.

A full project runs about $800 in materials, which lands well below factory-built vertical systems.

That figure assumes you already own a saw and a drill. You pay for this with time.

You will spend a weekend cutting to fit, and another adjusting slides so the boxes glide instead of grind. The plywood edges need banding or paint, or they fray within a year.

I think this option wins for anyone with a garage and a little patience. The factory systems look cleaner, but they do not adapt.

When your storage needs shift, you are stuck with their spacing. A plywood box you built yourself can become wider, narrower, or split into two smaller units with a fresh afternoon of work.

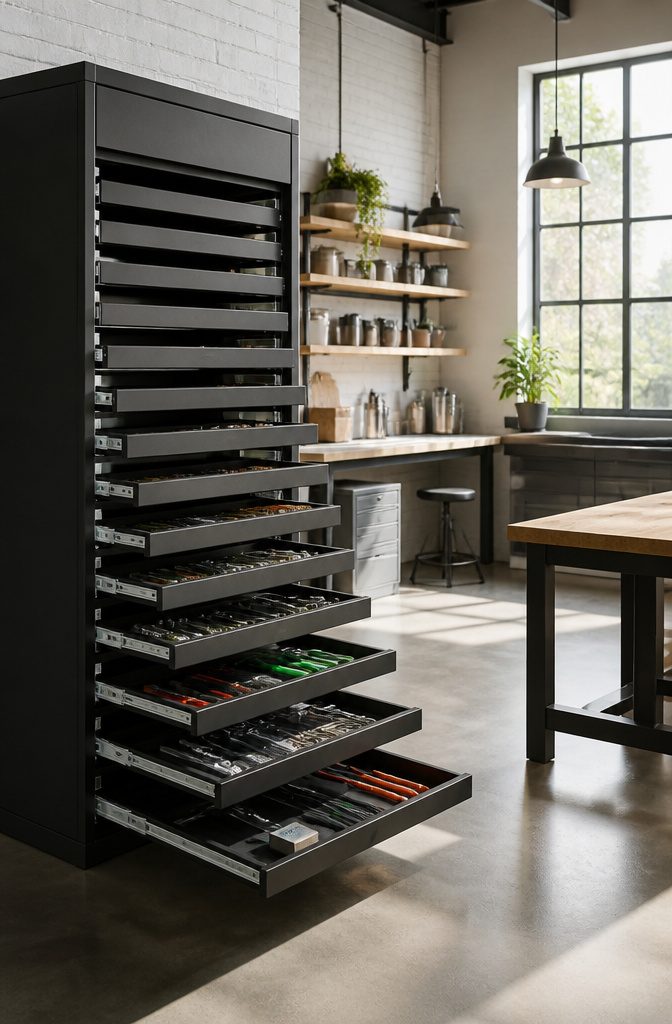

Rousseau Vertical Drawer Cabinets

Rousseau’s RV2 vertical drawer system is built for precision that a weekend build rarely matches. The drawers extend fully on interior trays, and the whole unit ships at 76 inches tall with widths of either 24 or 36 inches depending on the configuration.

That standardization means you are not guessing whether the slides will clear the frame or whether the load will rack over time.

The cost of that precision is flexibility. A 36-inch-wide, 10-drawer unit and a 24-inch, five-drawer version both sit at 27 inches deep, so the footprint is fixed whether your space is generous or tight.

You are buying into a system designed for industrial storage, which means the exterior reads as shop equipment, not living room joinery.

For a garage or basement workshop, that is honest and appropriate. For a bedroom or rental kitchen, the look is a harder sell.

Where this option wins is in the drawer action itself.

Full-extension hardware at this scale is expensive to source and fussy to align by hand. Rousseau has already solved that.

What you give up is any ability to adjust the height between drawers or to resize the casework for an odd corner. The trays manage parts well, but they manage them on Rousseau’s terms, not yours.

Levrack Systems

Levrack builds vertical sliding shelves on a scale most home garages will never stress.

The 7-foot unit carries 11,500 lbs overall, dropping to 7,000 lbs for the 12-foot span, with each mobile cabinet rated at 800 lbs and individual shelves at 200 lbs. That capacity is industrial-grade, and the price and footprint match.

In my view, this system only makes sense for two kinds of buyers.

One is the serious hobbyist working with engine blocks, cast iron, or bulk metal stock where a single component can weigh sixty or eighty pounds and you need dozens within arm’s reach.

The other is a small commercial shop, not a home project, where racking that capacity into half the floor footprint pays for itself in leased square footage.

For the typical renter or first-home owner doing weekend builds, Levrack is overbuilt to the point of impracticality.

The hardware is heavy-gauge steel on industrial casters, the install requires level concrete and likely professional help, and you are paying for capacity your hand tools and holiday bins will never touch.

If your heaviest item is a pressure washer or a tote of patio cushions, a lighter system saves money without giving up function.

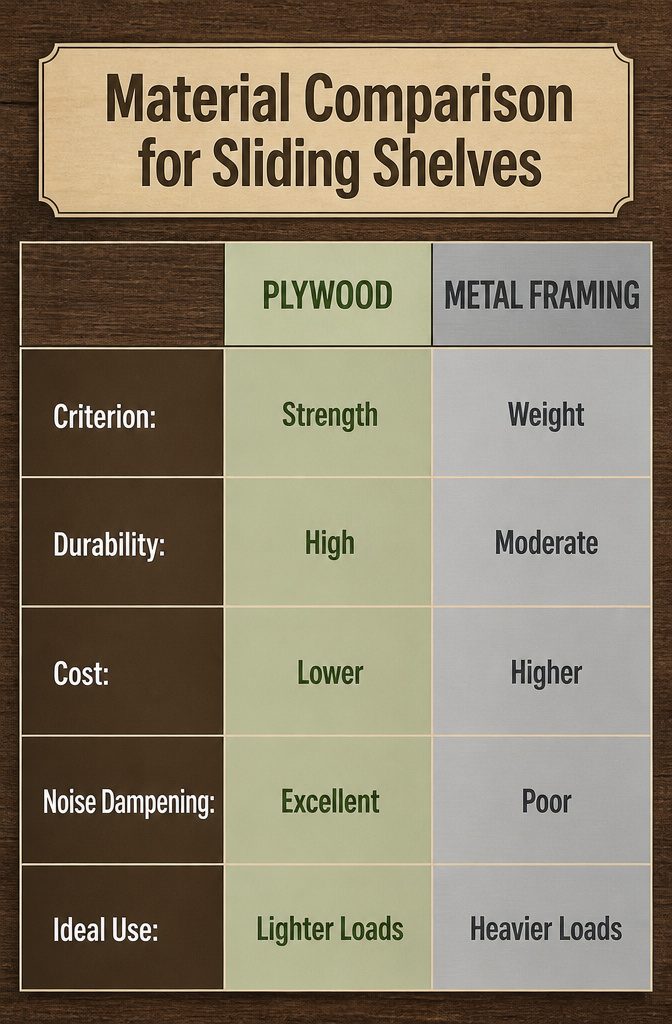

Materials That Hold Up

Plywood and metal framing each earn their place in vertical sliding shelves, but the choice depends on what the shelf actually has to do.

For the drawer boxes that roll out on tracks, 1/2" plywood is the spec that holds up over time without adding weight that fights the slide hardware.

Thinner stock warps under load and thicker stock wastes headroom in a system where every inch of vertical travel matters.

Metal framing pays off in the columns and upright structure, the parts that take the racking force when a loaded shelf rolls forward.

A steel upright with pre-punched mounting holes keeps the whole column square and gives you precise, repeatable track placement. Plywood uprights work for lighter loads and shorter spans, but they need bracing that eats into your usable depth.

You pay for this with cost and noise.

Metal columns cost more upfront and transfer sound when shelves move. Plywood columns dampen that rattle and let you trim the face with standard lumber, which matters if the unit sits in a living space rather than a garage.

For a weekend build on a real budget, I would put money into the metal where the structure needs it and stay with plywood for every box that slides.

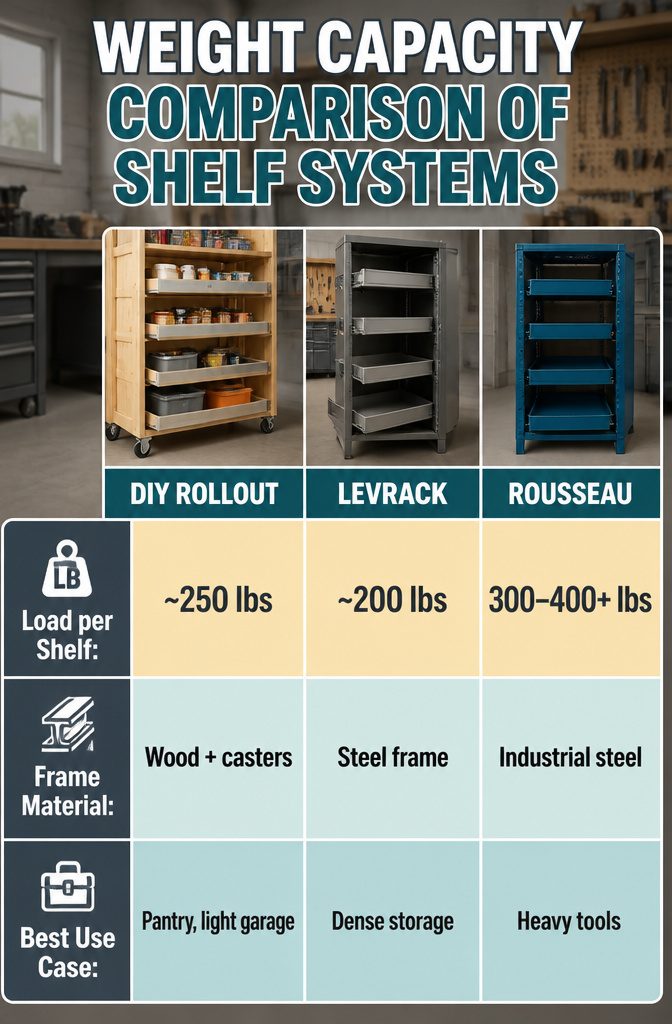

Weight Capacity by System

Load ratings separate the weekend builds from the systems you can actually load up.

A DIY rollout frame using doubled-up pine or plywood sides and a basic caster setup will carry about 250 lbs per shelf if the depth stays under 18 inches and the span is braced underneath.

Push deeper or wider without that support and you will watch the shelf sag before the hardware fails.

Levrack cabinets rate closer to 200 lbs per shelf, but that number sits within a fully engineered steel frame with vertical bearings and a locking slide mechanism.

The lower per-shelf figure is offset by the number of shelves and the stability of the whole column. You are paying for the system to stay square under load, not just to hold it.

Rousseau goes further into industrial territory, with ratings that assume shop-floor abuse and uniform industrial loading.

For a garage or basement workshop, that margin matters. For a pantry or craft room, it is overbuilt unless you are storing cast iron or bulk materials.

System	Load per Shelf	Frame Material	Best Use Case
DIY rollout	~250 lbs	Wood + casters	Pantry, light garage, custom sizes
Levrack	~200 lbs	Steel frame with bearings	Dense storage, frequent access
Rousseau	300–400+ lbs	Industrial steel	Heavy tools, workshop, commercial

I would take the DIY figure for anything under 200 lbs and spend the savings on better slides. Cross 250 lbs regularly and the Levrack steel starts earning its price.

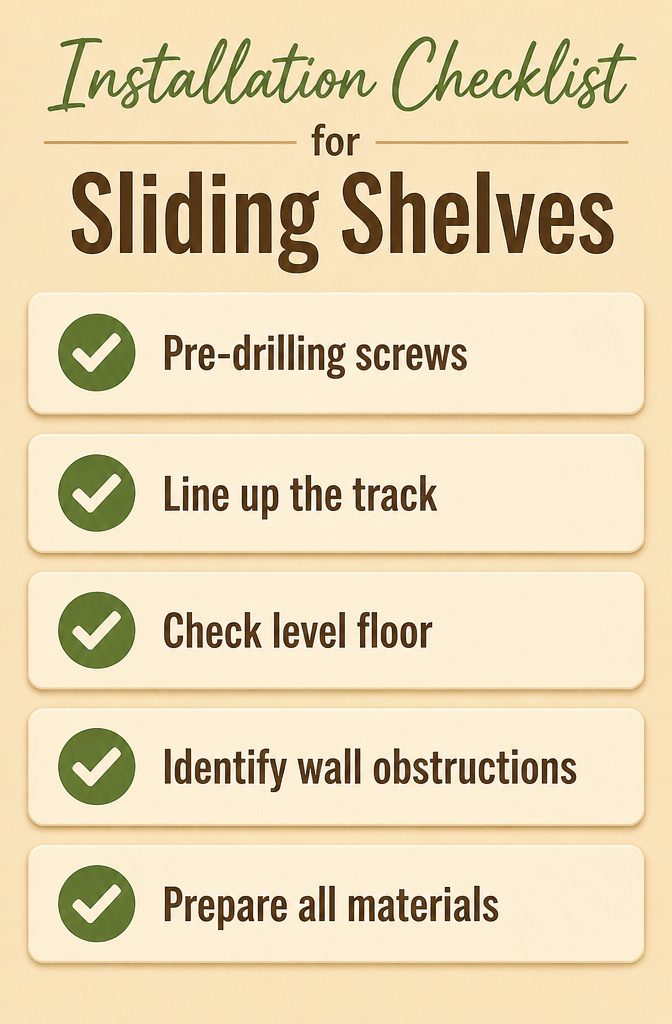

Installation Tips That Save the Build

Pre-drilling takes more time upfront, but any vertical sliding shelf system that uses metal tracks or hardwood frames needs it.

A pilot hole keeps the screw from skating and splits the wood less often than you’d expect, which matters when you’re working with the narrow rails these systems use.

• Line up the track before the first screw goes in. A straightedge or the factory edge of a scrap board does more good than eyeballing, because a track that wanders by even 1/8 inch will bind the rollers later.
• Check the floor before you stand anything up. Garage floors especially tend toward the unlevel, and adjustable leg levelers on the bottom of each column keep the framing dry and take up the slope without shimming.
• Find the wall obstructions before you mark hole locations. Studs are only part of it; a vent pipe or electrical box behind the drywall can turn a 20-minute mount into a patching job if you hit it blind.

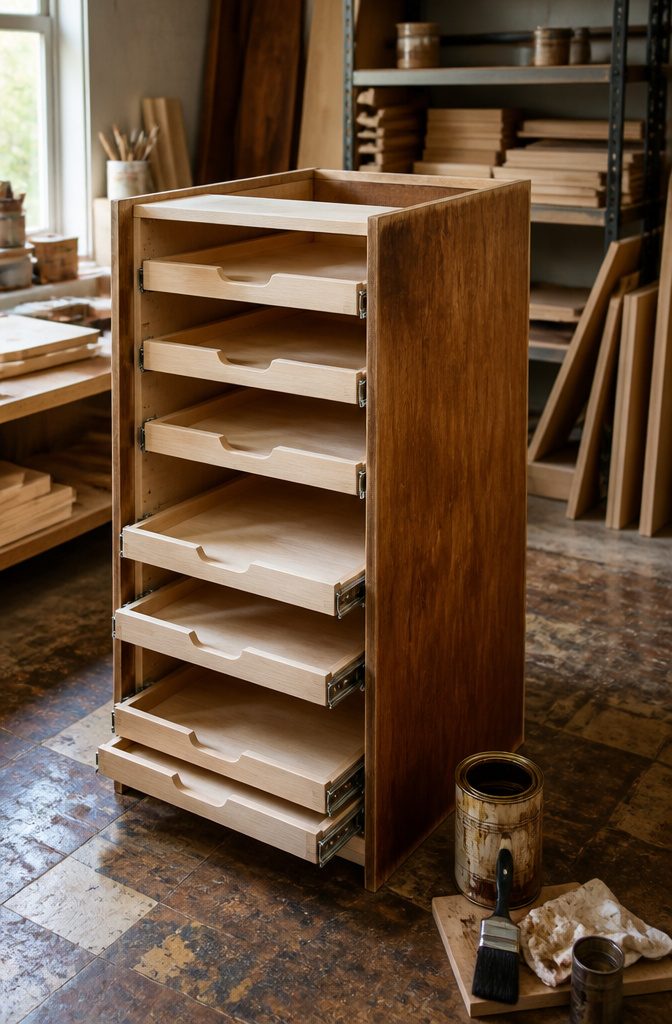

Customization and Finishing

Drawer size is where a vertical sliding shelf system stops being a kit and starts fitting your actual stuff.

I build each drawer around what it needs to hold, not the other way around. Equal spacing on the fronts keeps the face looking clean, but the box behind it can be whatever depth and height the contents demand.

A shallow drawer for sandpaper rolls sits above a deep one for saw blades, and both slide on the same hardware.

For finishing, stain before assembly if you can. Brushing Cabot Early American onto raw particleboard after everything is built means working around corners and hardware.

Two coats of Minwax Oil-Modified Polyurethane over the stain adds sheen and protection, but the real time saver is doing it while the parts are still loose.

Paint works the same way. Black on the columns, a lighter tone on the rollouts, and the whole unit reads intentional instead of shop-built.

You pay for this with patience.

You wait for the finish to cure before you handle the pieces again, or you smudge the face frames during install. Most weekend builders rush this step and regret it when the first scratch shows bare wood.
